Centrifugal dryer – cs

Features

Robust design of the machine
Test centre in Gostol TST to test cleaning of work pieces with combination of different media and compounds to achieve the best results.
Good quality for good price

Description

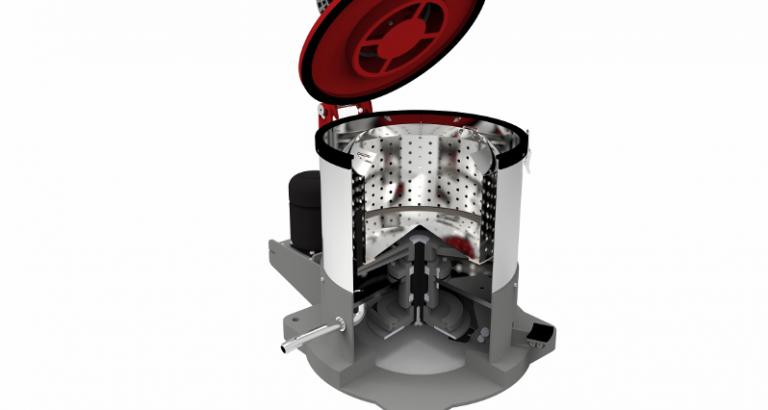

Centrifugal dryer is used for drying of small and medium-sized work pieces. It provide effective drying, without stains, and also prevents the work pieces to get stuck between each other.It is mainly used in cases when you can not use maize as a medium (the problem of maize grains to get stuck).Work pieces are dried in centrifugal system with the help of hot air from the heating elements in the upper part of the machine. A propeller on the bottom part of the machine sucks warm air and in this way, the warm air passes through the work pieces and we achieve maximum efficiency.

Water that is on the work pieces rake out by discharge channel on the machine.All vibratory finishing machines are made according to European standards and will meet all your requirements.
Gostol TST offers also wide range of deburring and polishing medias, surface finishing compounds, and drying and polishing grains. You will get all necessary for your vibratory finishing process in one place.

Technical Data

Machine Type	CS 50
Gross volume (lt)	48
Engine power (kW)	1.5
Voltage (3 phase)	380/50
Operating speed (RPM)	620
Heater power (W)	2000
Weight (kg)	240
