Porcelain polishing chips

Description

Porcelain media is used for cleaning, polishing and antiquing of various metals and plastics.

When used with adequate compound the final result is high luster of work pieces

Technical Data

Shape	Triangle GSTP	Oblique triangle GSOTP	Cylinder GSCP	Oblique cylinder GSOCP	Ellipse GSEP	Ball GSBP	Super ball GSBPS	Super oblique cylinder GSOCPS
Dimensions	4x4, 6x6, 10x10	4x4, 6x6, 10x10	3x10, 4x10, 4x15, 6x10, 6x15, 8x10, 10x10, 10x15	3x10, 4x10, 4x15, 6x10, 6x15	10x5x10, 20x10x20	3mm, 4mm, 6mm, 8mm, 10mm	3mm, 6mm	6x10

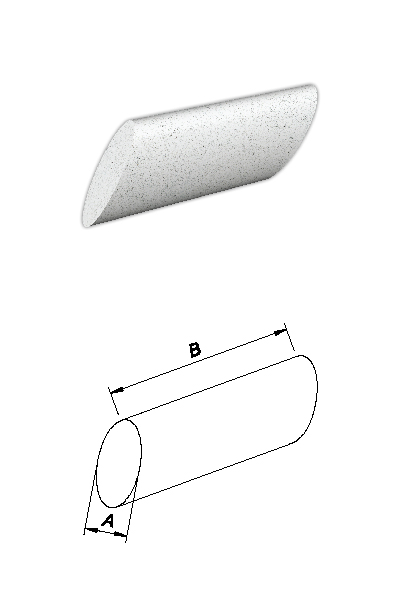

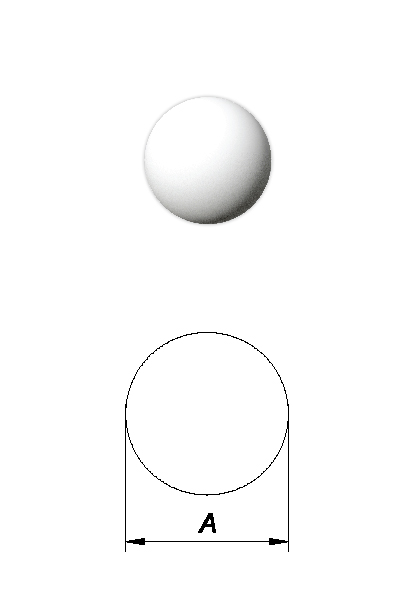

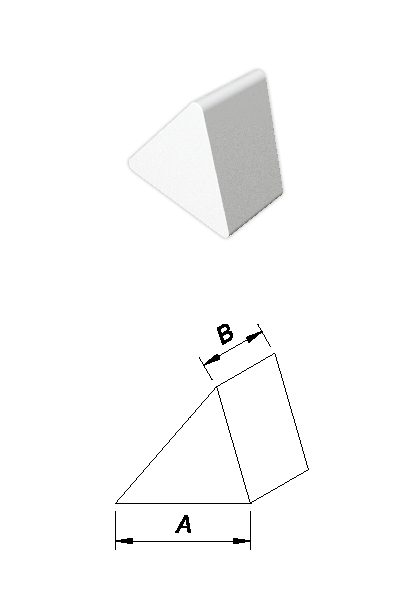

Technical drawing
